Fortinet FortiCam SD20
IP-Based Video Security
הערות תמחור:
- שימו לב: כל המחירים באתר כוללים מע"מ.
- החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
- מחירי המוצרים וזמינותם כפופים לשינויים ללא הודעה מוקדמת.
Overview:

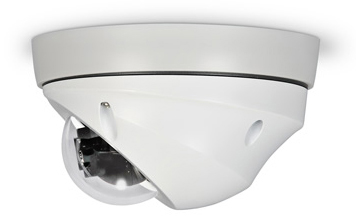

The FortiCam-20A is the eye of the FortiCamera™ video surveillance security solution. Place cameras to cover your entry points and critical areas such as point of sale terminals, warehouses, public areas and loading docks. The FortiCam-20A is a multi-purpose camera for any location.
FortiCam-20A Features & Benefits:
- Vandal-proof and weatherproof for secure indoor or outdoor deployment.
- Power over Ethernet (POE) eliminates the need for AC power wiring.
- Network auto-discovery; just plug them in and you’re up and running.
Solving Surveillance
FortiCamera solves your surveillance problems while streamlining the user experience. Place cameras to cover your entry points and critical areas such as Point of Sale terminals, warehouses, public areas and loading docks. Configure FortiCamera for continuous or motion-based recording (or both). Alarms and notifications keep you aware of what's going on. An event timeline lets you find and review motion events quickly and easily. The cameras are powered using Power over Ethernet (PoE) eliminating the need for AC power. Video security becomes an extension of your network.
Motion Detection with Snapshot Notifications
What's the most annoying issue with alarm systems? For many, it's false alarms. The alarm company called, and now you have to decide whether the alarm is legitimate. Did the cleaners forget to disarm the alarm or is someone cleaning out your office? FortiCamera sends a snapshot notification email to your smartphone or other device with images from the motion event. You immediately see what's going on without having to log in to a dedicated app or navigate any menus.
Appliance-based, License-free
No software installation, no patches, no per-seat fees, no per-camera licenses and no fuss — FortiCamera is easy. Plug in your cameras, turn on the appliance, open up a web browser and you're off and running. FortiCamera uses a web-based interface with no need for a dedicated client. Camera auto-discovery makes the initial set up a breeze. Firmware upgrades, new features and product support are all covered by
Features & Benefits:
| Features: | Benefits: |
|---|---|
| Archive video to remote storage device | Archive video files to a remote device for long-term storage, freeing up local storage space. Archived files can be accessed for playback from local or remote storage using the FortiCamera web interface. |
| Multiple network interfaces | Four Gigabit network interfaces give you flexible configuration options and allow you to implement dedicated camera networks, providing increased security and performance. |
| Operator and Administrator access profiles | Separating operators and administrators provides improved security. Administrators have full access to FortiCamera features, while operators can't change the NVR configuration, delete video files or disable cameras. Operators can be assigned access to specific camera groups. |

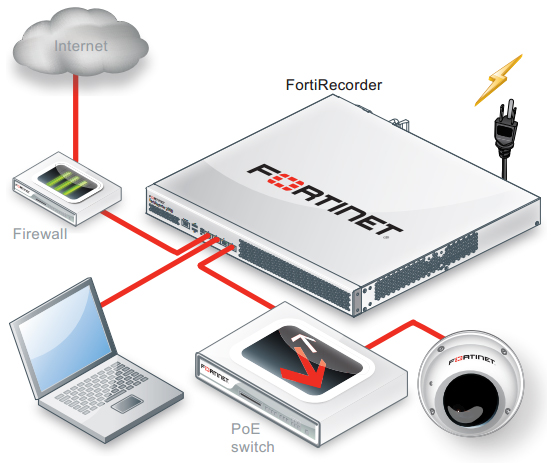

Deployment:
Connecting to FortiRecorder
FortiRecorder NVRs are intended for installation in a restricted access location.
Specifications:

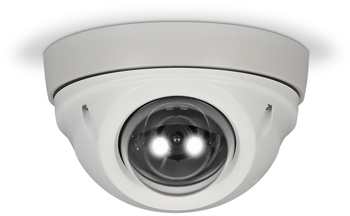

 Front View |
 Side View |
| Model: | FortiCam-200D NVR | FortiCam-20A Camera |
|---|---|---|
 |
 |
|
| Hardware Specifications | ||
| Format | 1u appliance | Indoor/outdoor, vandal-proof, fixed dome |
| 10/100/1000 Interfaces (Copper, RJ-45) | 4 | – |
| Storage | 1TB | – |
| Sensor Type | – | 1/2.5" CMOS |
| Iris | – | F1.6 |
| View Angle (degrees) | – | H=40.2/V=32/D=52 |

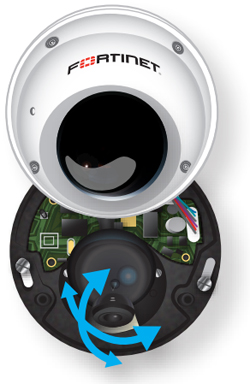

| Pan/Tilt/Rotation (degrees) | – | +-35/0-90/+-180 |
| Streaming Protocol | – | RTSP |
| Video Compression | – | H.264 |
| Dimensions | ||
| Height x Width x Length (in) | 1.8 x 17.1 x 13.9 | 2.11 x 4.33 x 4.33 |
| Height x Width x Length (mm) | 45 x 433 x 352 | 5.37 x 11 x 11 |
| Weight | 13.4 lbs (6.1 kg) | 1.02 lbs (0.46 kg) |
| Environment | ||
| Power Required | 110-240V AC | PoE (802.3af) |
| Power Consumption (AVG) | 60W | 5.5W |
| Heat Dissipation | 205 BTU/h | TBD |
| Operating Temperature (deg F / deg C) | 32 to 104 / 0 to 40 | -4 to 122 / -20 to 50 |
| Storage Temperature (deg F / deg C) | -13 to 158 / -35 to 70 | TBD / TBD |
| Humidity (non-consending) | 5 to 95% | 10 to 80% |
| Compliance | ||
| Safety Certifications | FCC Class A, CE Mark, VCCI, C Tick, UL/cUL |
FCC Class B, CE Mark, Vandal-proof (IK10), Weather Proof (IP67) |
Services & Support:
FortiGuard Security Subscription Services
FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.
FortiCare Support Services
FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.
Documentation:
Download the Fortinet FortiCamera Datasheet (PDF).
